QT10-15 Fully Automatic Hydraulic And Vibration Paver Block Machine
You are here: Home » Products » Block Making Machine » QT10-15 Fully Automatic Hydraulic And Vibration Paver Block Machine

QT10-15 Fully Automatic Hydraulic And Vibration Paver Block Machine

raw material for fully automatic block production line :Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Quantity:
  • QT10-15
  • yixin
  • 8474809090
  • 45.2Kw
  • 40000
  • 13.8ton


QT10-15 Automatic Hydraulic Concrete Hollow  Block Making Machine The main rack frame is made of heavy square steel tube and the base is welded by solid steel plate.

IMG_9587

Feeding frame, bottom plate and mixing blade are made of high-duty steel , the location of bottom plate can be adjusted.a number of staggered rakes ensure raw materials fed well- distributed, and the compulsory continuous-rotation feeding device make second-time broken arch, which quicken raw material feeding.


gearing of hydraulic motor could effectively reduce radial load. And the eccentric vibation shaft driven by hydraulic motor which could adjust vibration frequence and force. The 4-hole axis localizer prevents vibration table move in horizontal direction

图片7图片4



vibation table placed on rubber spring could greatly reduce noise around 10~15decibel and avoid damage to machine

IMG_9645

Applied Products:

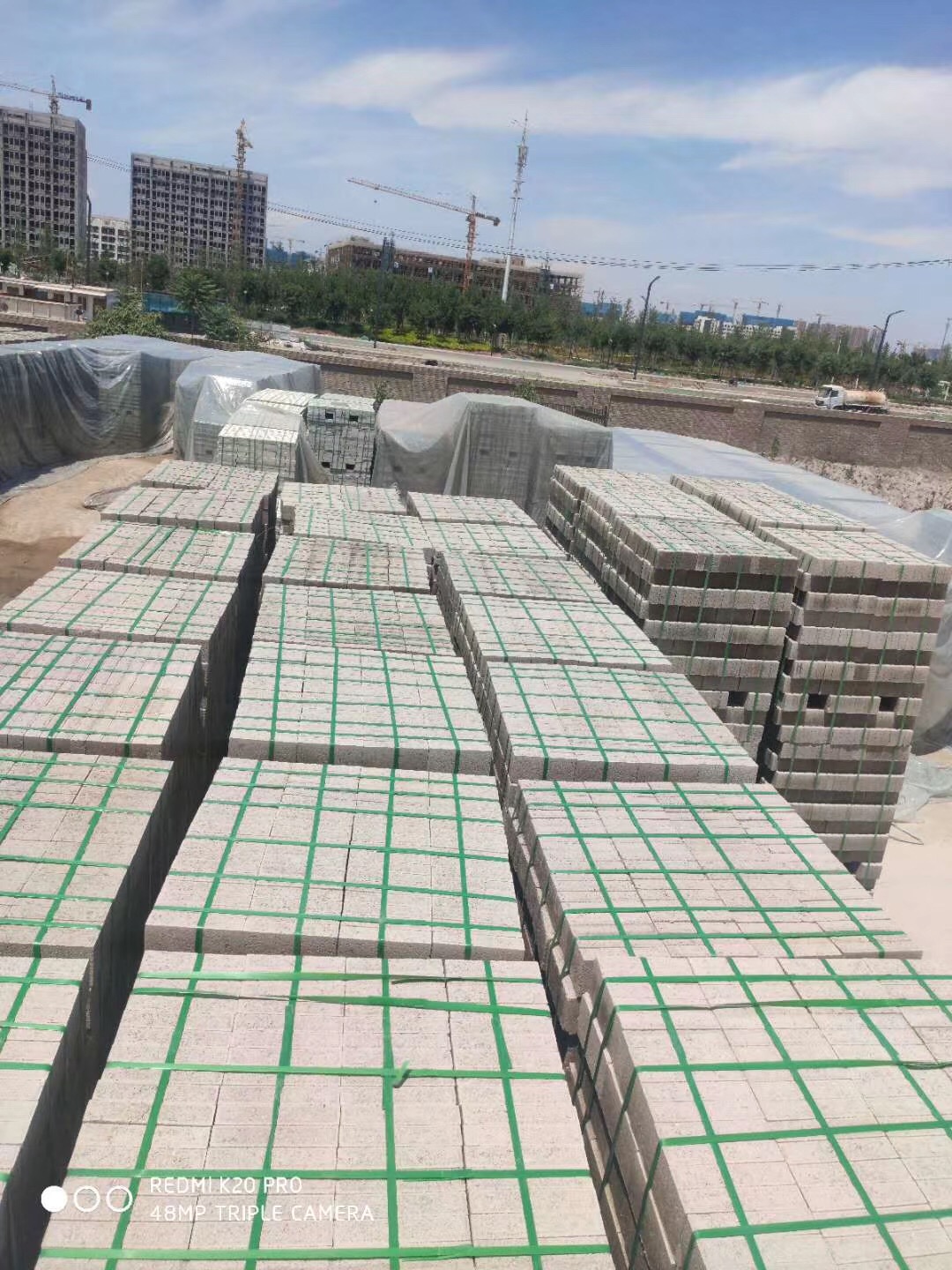

Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
IMG_0789(20200528-102503)

IMG_0787(20200528-102456)

IMG_0402(20200326-095609) - 副本

IMG_0400(20200326-095603)

IMG_0570(20200422-094422)

IMG_7434


machine capacity:

type

specification mm

pcs/pallet

pcs/hour

pcs/8 hours

hollow block

400*200*200

10

1800

14400

solid brick

240*115*53

56

13440

107520

paver

200*100*60

35

6300

50400

 curbstone

1000*200*150

3

540

4320


Kenya (2)

KENYA


Namibia

NAMIBIA


Tanzania

TANZANIA


Ripple paver (2)

RIPPLE PAVER


Kerbstone (2)

KERBSTONE


Grass Paver

GRASS PAVER
